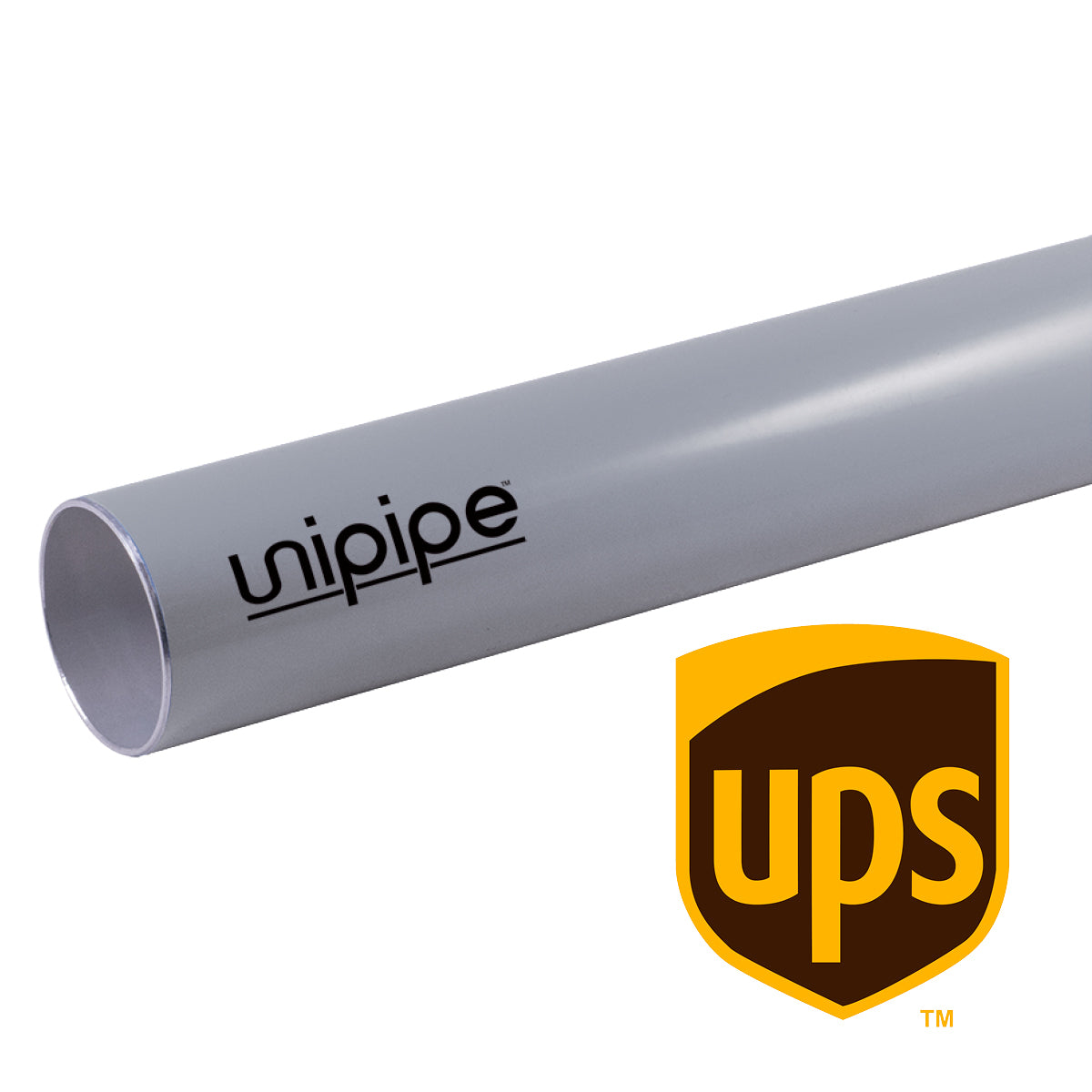

3/4" (20mm) UnipipeVAC Pipe UPS Shipping
CUVTT0.020250
-29 inHg ( -0.87 bar)
- 8 FT (2.5M) Section
- Weight: 2.1 lbs
- For Vacuum
- Max Working Pressure -29 inHg ( -0.87 bar)
Unipipe Product Warranty - 20 Years
Manufactured by EQOfluids. Made in Spain
Exceptionally Secure Joints
Very Simple and Quick to Install
Product Details
3/4” (20mm) x 19.6' (6M) UnipipeVAC Pipe
Wall Thickness
1.0mm
Specifications
Max Working Pressure
25.7 (4-1/2” to 10”)
-29 inHg (3/4” to 3-1/2”)
Plant Testing Pressure 1 hour at 20°C
348 PSI (24 bar)
Quality Testing Pressure 1 hour at 20°C
928 PSI (64 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel
