UnipipeHP
-

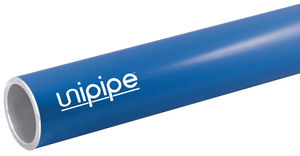

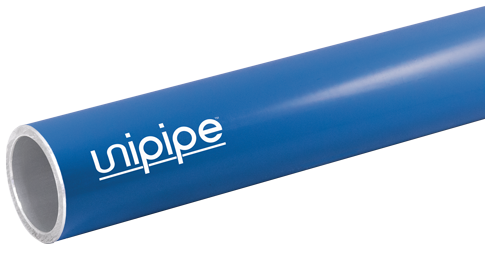

1” (25mm) UnipipeHP Pipe
1” (25mm) UnipipeHP Pipe
UCTT0.025400
1015 PSI (70 bar)
13.1' (4M) Section
Weight: 2.9 lbs
For higher pressure needs exceeding 232 PSI
Max Working Pressure 1015 PSI (70 bar)
See full product details
Quantity:
-
+
$50
Unipipe Product Warranty - 20 Years
Exceptionally Secure Joints
Very Simple and Quick to Install
You May Also Like
3/4” (20mm) UnipipeHP Pipe
13.1' (4M)
UCTT0.020400
$40
1-1/4” (32mm) UnipipeHP Pipe
13.1' (4M)
UCTT0.032400
$70
1-1/2” (40mm) UnipipeHP Pipe
13.1' (4M)
UCTT0.040400
$90
2” (50mm) UnipipeHP Pipe
13.1' (4M)
UCTT0.050400
$130
2-1/2” (63mm) UnipipeHP Pipe
13.1' (4M)
UCTT0.063400
$150
3/4” (20mm) Straight Coupling
UCCC0.020020
$12
1” (25mm) Straight Coupling
UCCC0.025025
$14
1-1/4” (32mm) Straight Coupling
UCCC0.032032
$22
1-1/2” (40mm) Straight Coupling
UCCC0.040040
$26
2” (50mm) Straight Coupling
UCCC0.050050
$59
2-1/2” (63mm) Straight Coupling
UCCC0.063063
$74
3/4” (20mm) Sliding Straight Coupling
UCCC1.020020
$13
1” (25mm) Sliding Straight Coupling
UCCC1.025025
$16
1-1/4” (32mm) Sliding Straight Coupling
UCCC1.032032
$24
1-1/2” (40mm) Sliding Straight Coupling
UCCC1.040040
$29
2” (50mm) Sliding Straight Coupling
UCCC1.050050
$64
2-1/2” (63mm) Sliding Straight Coupling
UCCC1.063063
$82
3/4" (20mm) x 90° Elbow
UCCC9.020020
$13
1" (25mm) x 90° Elbow
UCCC9.025025
$18
1-1/4" (32mm) x 90° Elbow
UCCC9.032032
$28
1-1/2" (40mm) x 90° Elbow
UCCC9.040040
$35
2" (50mm) x 90° Elbow
UCCC9.050050
$70
2-1/2" (63mm) x 90° Elbow
UCCC9.063063
$85
3/4" (20mm) x 45° Elbow
UCCC4.020020
$14
1" (25mm) x 45° Elbow
UCCC4.025025
$17
1-1/4" (32mm) x 45° Elbow
UCCC4.032032
$30
1-1/2" (40mm) x 45° Elbow
UCCC4.040040
$37
2" (50mm) x 45° Elbow
UCCC4.050050
$70
2-1/2" (63mm) x 45° Elbow
UCCC4.063063
$100
3/4” (20mm) Equal Tee
UCCCT.020020
$18
1” (25mm) Equal Tee
UCCCT.025025
$22
1-1/4” (32mm) Equal Tee
UCCCT.032032
$36
1-1/2” (40mm) Equal Tee
UCCCT.040040
$43
2” (50mm) Equal Tee
UCCCT.050050
$98
2-1/2” (63mm) Equal Tee
UCCCT.063063
$115
3/4" (20mm) Tee with 1/2" FNPT Branch Line
UCCFT.020015N
$18
1" (25mm) Tee with 3/4" FNPT Branch Line
UCCFT.025020N
$22
1-1/4" (32mm) Tee with 1" FNPT Branch Line
UCCFT.032025N
$32
1-1/2" (40mm) Tee with 1-1/4" FNPT Branch Line
UCCFT.040032N
$42
2" (50mm) Tee with 1-1/2" FNPT Branch Line
UCCFT.050040N
$75
2-1/2" (63mm) Tee with 2" FNPT Branch Line
UCCFT.063050N
$110
3/4" (20mm) x 90° Elbow with 1/2" MNPT
UCCM9.020015N
$13
1" (25mm) x 90° Elbow with 1/2" MNPT
UCCM9.025015N
$22
1" (25mm) x 90° Elbow with 3/4" MNPT
UCCM9.025020N
$18
1-1/4" (32mm) x 90° Elbow with 1" MNPT
UCCM9.032025N
$27
1-1/2" (40mm) x 90° Elbow with 1-1/4" MNPT
UCCM9.040032N
$30
1-1/2" (40mm) x 90° Elbow with 1-1/2" MNPT
UCCM9.040040N
$43
1-1/2" (40mm) x 90° Elbow with 2" MNPT
UCCM9.040050N
$46
2" (50mm) x 90° Elbow with 1-1/2" MNPT
UCCM9.050040N
$45
Product Details
1” (25mm) x 13.1' (4M) UnipipeHP Pipe
Wall Thickness
2.5mm
Specifications
Max Working Pressure
435-580-1015 PSI (30-40-70 bar)
Plant Testing Pressure 1 hour at 20°C
652-870-1522 PSI (45-60-105 BAR)
Quality Testing Pressure 1 hour at 20°C
1740-2320-4061 PSI (120-160-280 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel
