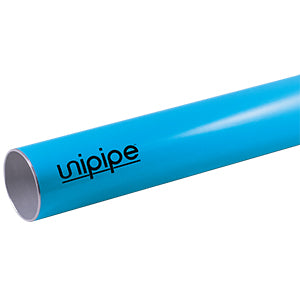

8” (200mm) UnipipeAIR Pipe
UATT0.200600
232 PSI (16 bar)
- 19.6' (6M) Section
- Weight: 89.3 lbs
- For Compressed Air (also rated for oils and coolants)
- Max Working Pressure 232 PSI (16 bar)
Unipipe Product Warranty - 20 Years
Exceptionally Secure Joints
Very Simple and Quick to Install
$40
$50
$70
$90
$130
$150
$190
$310
$400
$500
$990
$1,960
$12
$14
$22
$26
$59
$74
$125
$136
$139
Coming Soon
$566
Coming Soon
Coming Soon
$13
$16
$24
$29
$64
$82
$130
$139
$13
$18
$28
$35
$70
$85
$140
$190
$270
Coming Soon
$600
Coming Soon
Coming Soon
$14
$17
$30
Product Details
8” (200mm) x 19.6' (6M) UnipipeAIR Pipe
Wall Thickness
4.0mm
Specifications
Max Working Pressure
232 PSI (16 bar)
Plant Testing Pressure 1 hour at 20°C
348 PSI (24 bar)
Quality Testing Pressure 1 hour at 20°C
928 PSI (64 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel
