Unipipe
-
Products
-
UnipipeAIR
-

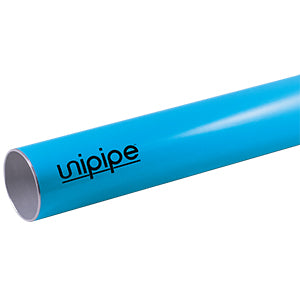

5” (140mm) UnipipeAIR Pipe
UATT0.140600
232 PSI (16 bar)
19' (5.8M) Section
Weight: 44.7 lbs
For Compressed Air (also rated for oils and coolants)
Max Working Pressure 232 PSI (16 bar)
See full product details
Error
Quantity must be 1 or more
Default Title - Sold out
Quantity:
-
+
Sold out
Adding product to your cart
Unipipe Product Warranty - 20 Years
Manufactured by EQOfluids. Made in Spain
Exceptionally Secure Joints
Very Simple and Quick to Install
You May Also Like
Product Details
5” (140mm) x 19.6' (6M) UnipipeAIR Pipe
Wall Thickness
2.8mm
Specifications
Max Working Pressure
232 PSI (16 bar)
Plant Testing Pressure 1 hour at 20°C
348 PSI (24 bar)
Quality Testing Pressure 1 hour at 20°C
928 PSI (64 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel
