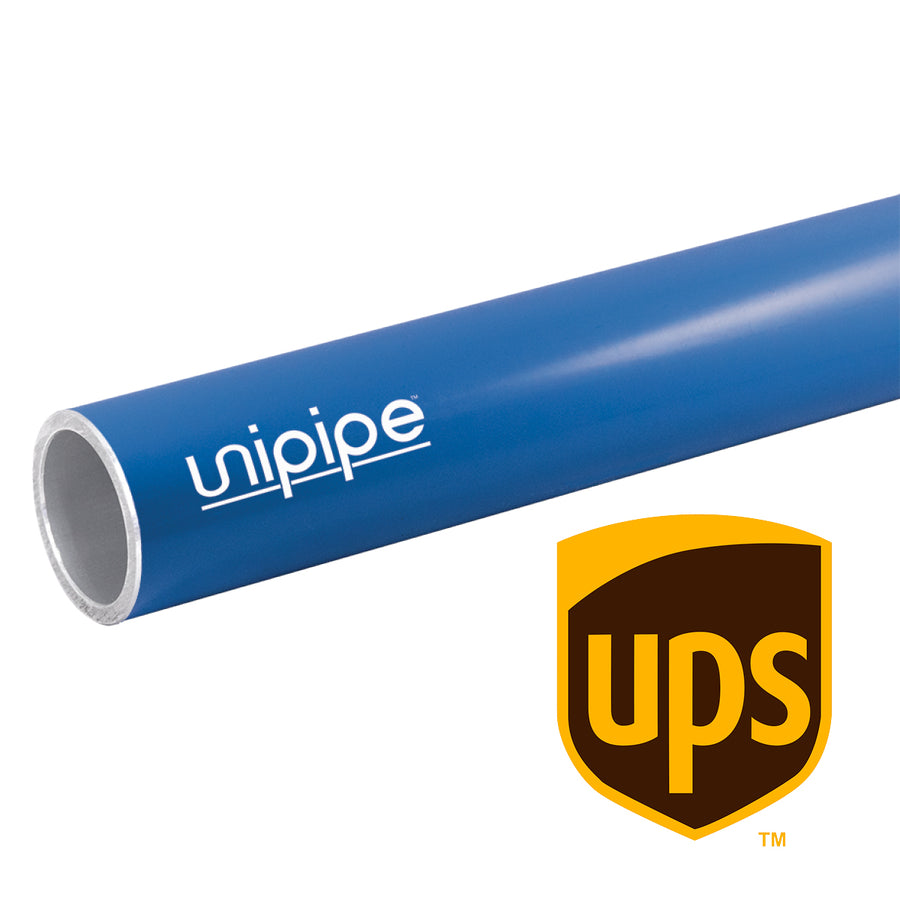

1" (25mm) UnipipeHP Pipe UPS Shipping
CUCTT0.025200
1015 PSI (70 bar)
- 6.5 FT (2M) Section
- Weight: 2.9 lbs
- For higher pressure needs exceeding 232 PSI
- Max Working Pressure 1015 PSI (70 bar)
Unipipe Product Warranty - 20 Years
Manufactured by EQOfluids. Made in Spain
Exceptionally Secure Joints
Very Simple and Quick to Install
Product Details
1” (25mm) x 13.1' (4M) UnipipeHP Pipe
Wall Thickness
2.5mm
Specifications
Max Working Pressure
435-580-1015 PSI
(30-40-70 bar)
Plant Testing Pressure 1 hour at 20°C
652-870-1522 PSI
(45-60-105 BAR)
Quality Testing Pressure 1 hour at 20°C
1740-2320-4061 PSI
(120-160-280 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel
